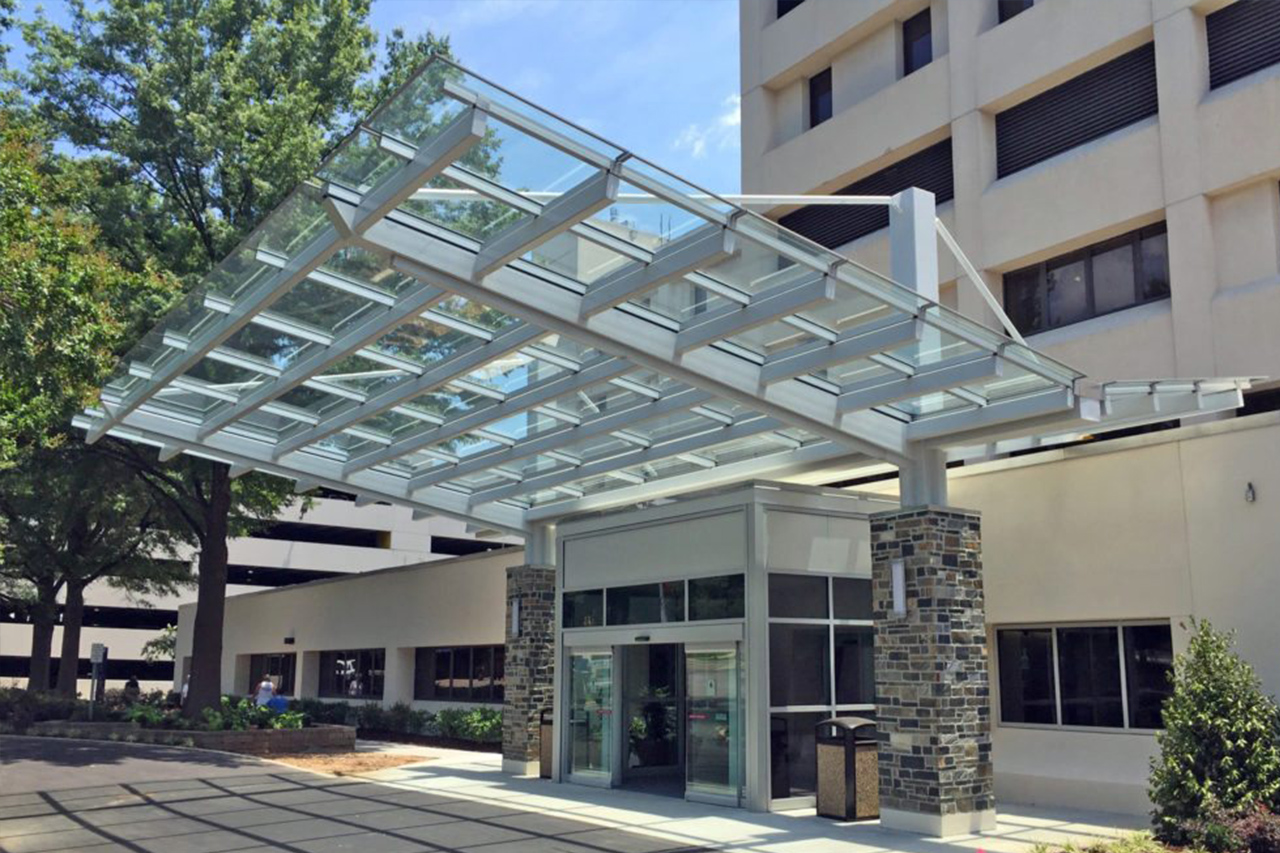

Horizon M Series

Incredibly strong and completely customizable for a beautiful, monolithic polycarbonate canopy design


Most common applications:

  • Education buildings
  • Healthcare buildings
  • Hotel and conference centers
  • Airport and railway stations

Key benefits:

  • Custom panel shapes for a completely unique canopy system
  • Reinforced with 3/8 inch thick polycarbonate panels
  • Up to 250 times impact strength of glass
  • Extruded aluminum edge guard at ends and sides as needed
Horizon M Series

Tools and Guides

Product Details

  • Design

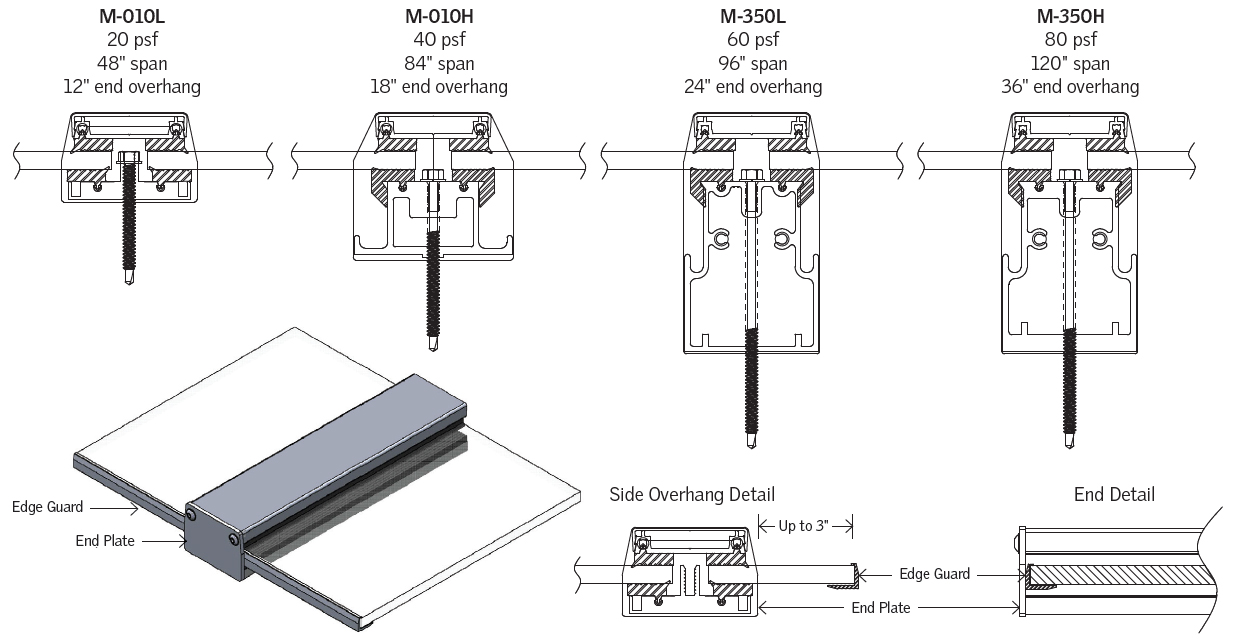

    Horizon M Series Details
    • Monolithic polycarbonate panel thickness of ³/8"
    • Rafter spacing up to 2' on center
    • Up to 20' continuous length without purlins
    • Minimum slope of 1/2" in 12
    • Support structure by other
