Continuous Vaults

In standard rise, half-round and quarter-round vault configurations


Most common applications:

  • Healthcare centers
  • Hotel and conference centers
  • Retail and shopping malls
  • Office and public buildings

Key benefits:

  • A double-pitch structure that offer virtually unlimited design possibilities for a fully customized configuration
  • Max rib spacing of 48'' on center
  • Available with Lumira® Aerogel–filled multiwall polycarbonate laylite panels for improved thermal performance and excellent light diffusion
  • Vaults are glazed with your choice of acrylic, polycarbonate or impact modified acrylic in clear, tinted and thermal translucent options

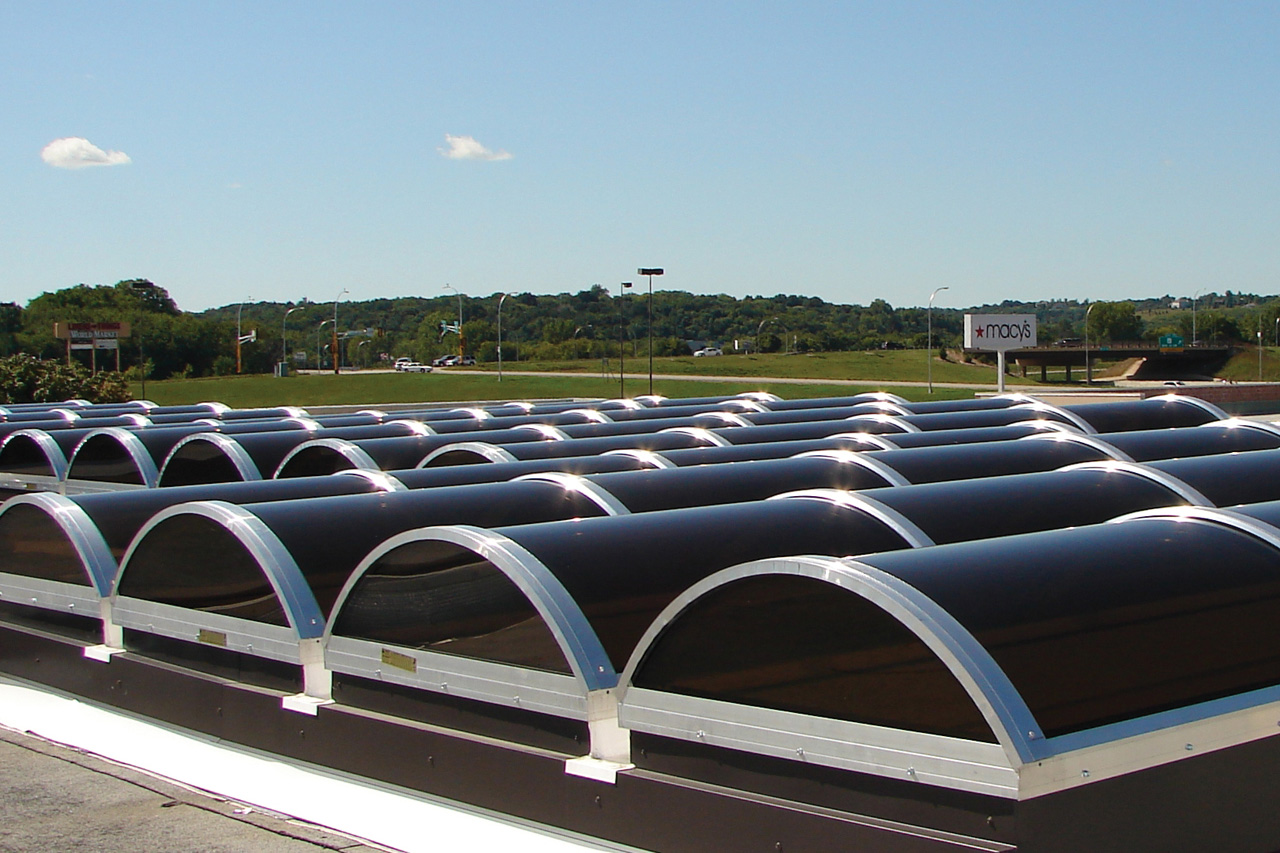

Continuous Vault Systems, Barrel Vaults with Vertical Ends
View Gallery

Tools and Guides

Product Details

  • Quarter-Round

    Sizes

    • CBQD: 24" to 75", unlimited lengths. Also available with Lumira® Aerogel filled multiwall polycarbonate panel (CBQL)
    • Structural: 75" to 120", unlimited lengths.

  • Half-Round

    Sizes

    • CBHD: 48" to 120", unlimited lengths. Also available with Lumira® Aerogel filled multiwall polycarbonate panel (CBHL)
    • Structural: 10’ to 20’, unlimited lengths.

  • Standard Rise

    Sizes

    • CBSD: 36″ to 123″, unlimited lengths. Also available with Lumira® Aerogel filled multiwall polycarbonate panel (CBSL)
    • Structural: 10′ to 16′, unlimited lengths.

  • Hurricane Impacted
    Available in widths of up to 48″.

    The Hurricane Resistant models are glazed with impact modified acrylic with clear, tinted and translucent options, and are Florida Product Approved / Non-Impact (WBDR)/ Non HVHZ.

    Outer Glazing Options
    Impact Modified Acrylic
    Clear or White

    Inner Glazing Options
    Impact Modified Acrylic
    Clear or White
