Horizon S Series - Single Pitch

Virtually Unlimited Design Possibilities with Spans up to 22' Wide


Most common applications:

  • Applications with a pitch between 15° and 60°
  • Public education, healthcare, and office buildings
  • Retail and shopping malls
  • Hotels and conference centers

Key benefits:

  • Single- or double-multiwall polycarbonate with a span of up to 22' in width*
  • Fully customizable control over light transmission, solar heat gain, and R-value
  • Lumira® aerogel filled panels are available for even greater thermal performance
  • Reduces labor and material costs in new construction, retrofit, or renovation projects - fewer parts, faster on-site assembly
  • Smaller sizes can ship preassembled and glaze
*Approximate span widths depending on configuration and load.

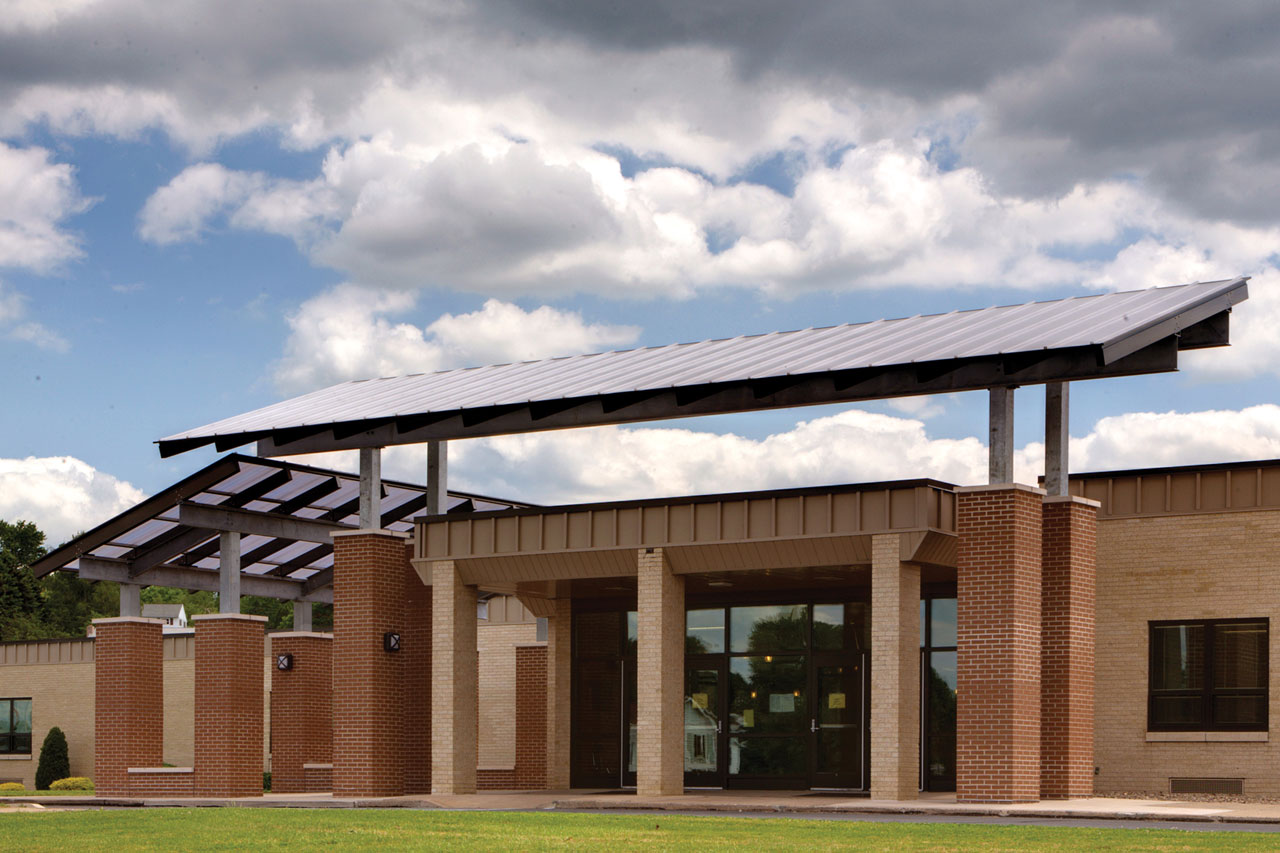

Single Pitch Standing Seam Canopies, 20mm Clear Polycarbonate

Tools and Guides

Product Details

  • Framing Options

    Pinnacle System

    For spectacular large-scale custom structures spanning up to 40 feet, at any pitch you desire between 15° and 60°.

    With its variable-pitch hinge design, the Pinnacle Systems offer you the versatility of a custom configured structural skylight system with the reliability and cost savings of standardized engineering, construction and installation. Fast on-site assembly and installation. Spans up to 40 feet, at any pitch you desire between 15° and 60°.

    • Built to order from stock for shorter lead times
    • Fewer parts, faster on-site assembly
    • Narrow profiles provide clean lines
    • Larger span capability
    • Available in Hurricane Resistant

    Quicker Installation
    Components always assemble the same consistent way. Sills encompass the entire perimeter so installers rely less on sealants.

    Leak-Resistant
    Continuous sill enclosure around skylight perimeter helps reduce air infiltration through weep holes and effectively guards against water intrusion. Thermally-enhanced construction.

    Concealed Fasteners
    Through bolt fastening system further eases installation, providing a clean, aesthetically pleasing look on both the interior and exterior.

  • Sizes
    Framing System Supports Spans Up To (Approximate)* Aluminum Rafter Tube Depth
    Pinnacle 350 9′ Wide 3.5″
    Pinnacle 600 15′ Wide 6″
    Pinnacle 900 22′ Wide 9″
    *Approximate span widths depending on configuration and load. Contact your local sales representative for more information.

  • Glazing Options
    Single Glazed Models
    16mm: Opal, Clear, or Clear w/ Lumira
    25mm: Opal, Opal IR, Clear, Clear w/ Lumira, Clear IR, or Bronze

    Double Glazed Models

    Outer: 25mm Opal, Opal IR, Clear, Clear w/ Lumira, or Clear IR
    Inner: 16mm Opal or Clear

    Lumira aerogel filled panels are available for greater thermal performance.
